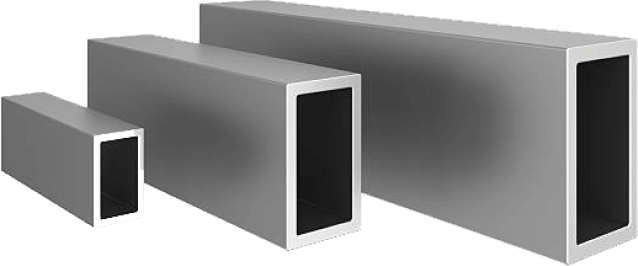

Stainless Steel Flat Tubing
Stainless steel flat tubes are products that can be used for various applications in construction, design, and decoration. Stainless steel tubes have a lower weight and cost than stainless steel plates and offer better surface finish and strength properties. Our tubes are available in different grades, sizes, and finishes to suit different needs and preferences. Raaj Tubes is a leading manufacturer and exporter of stainless steel flat tubes that meet the highest standards of quality, innovation, and excellence.
Raaj Tubes uses the latest technology, best quality material, and excellent craftsmanship to produce stainless steel flat tubes that are strong, exceptional, and sustainable. Raaj Tubes also offers customized services, such as cutting, bending, polishing, and welding, to ensure that you get the perfect product for your project. With Raaj Tubes, you can be assured of getting the finest quality of stainless steel tubes at the most competitive prices.
Require Stainless Steel Flat Tubes?
| Rectangular | Weight (Kg/m)(Metric Sizes) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| H x B (mm) | 1.00 | 1.20 | 1.50 | 2.00 | |||||||
| 20 | 10 | 0.453 | 0.538 | 0.661 | 0.857 | ||||||
| 30 | 10 | 0.613 | 0.729 | 0.901 | 1.176 | ||||||
| 40 | 10 | 0.772 | 0.921 | 1.140 | 1.495 | ||||||
| 50 | 10 | 0.932 | 1.112 | 1.379 | 1.814 | ||||||
| 70 | 10 | – | 1.495 | 1.858 | 2.452 | ||||||
| 80 | 10 | – | 1.686 | 2.097 | 2.771 | ||||||
| 90 | 10 | – | 1.878 | 2.336 | 3.090 | ||||||
| 100 | 20 | – | 2.261 | 2.814 | 3.728 | ||||||
| Manufacturing Process | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Forming | Cold formed | ||||||||
| Welding process | TIG, Plazma, TIG-Plazma-TIG | ||||||||
| Weld condition | External weld bead removed | ||||||||
| Tube Marking | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ink-jet marking on tube | Raaj Tubes, grade, dimensions Heat number, length, Made in india |
||||||||
| Bundle tag | Dimensions, length, grade, surface condition, bundle number, total meters |
||||||||
| Available Surface Condition | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Mill Finish, 180 Grit, 220 Grit, 320 Grit, 400 Grit, 600 Grit | |||||||||

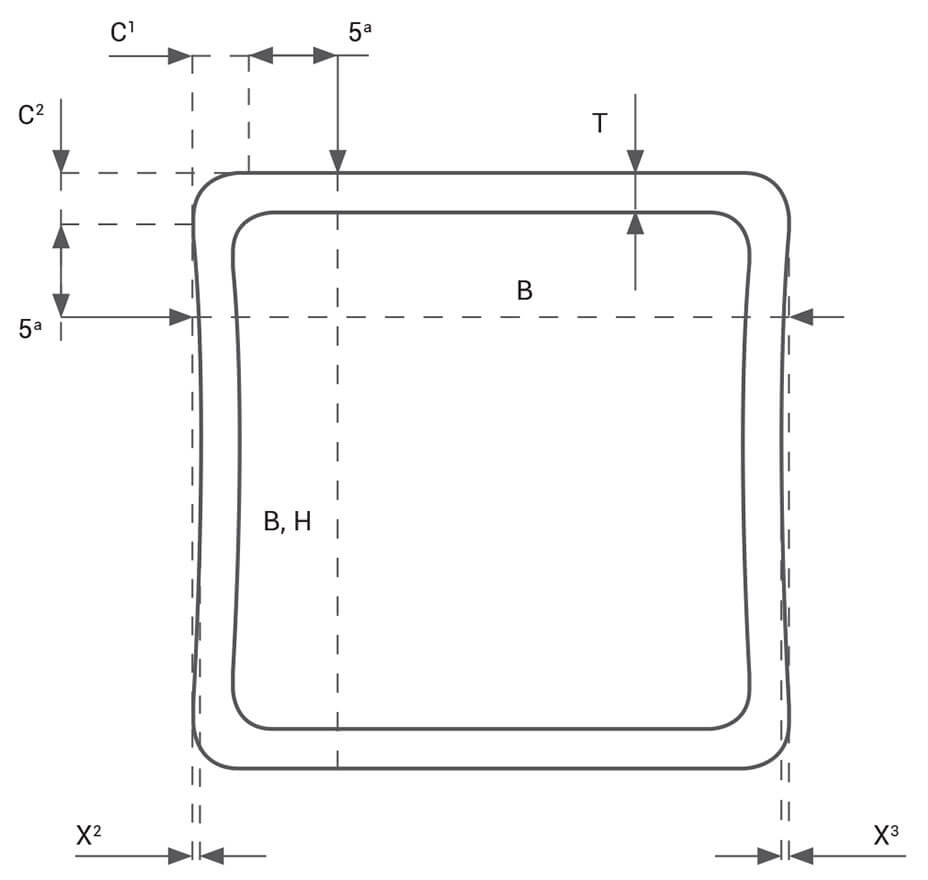

| Tolerances | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Characteristic | Tolerance | ||||||||
| Outside dimensions, B and H | ± 1% with a minimum of ± 0.5 mm, when B, H < 100 mm | ||||||||
| Concavity/Convexity (x1/x2) | Max. 0.8% with a minimum of 0.5 mm | ||||||||
| Wall thickness, T | ± 10%, when T ≤ 2 mm | ||||||||
| External corner profile, C1, C2 or R(1) | Maximum 1.5T, when T ≤ 3 mm and B, H ≤ 100 mm | ||||||||
| Length, L(2) | Standard length 6000 mm, tolerance -0/+20 mm | ||||||||
| Straightness | 0.15% of total length | ||||||||
| Twist | 2 mm + 0.5 mm/m | ||||||||
| Weld postion | Narrow side | ||||||||
| (1) Exception from standard | |||||||||
| (2) Better than standard length tolerance -0/+50 mm | |||||||||
PRODUCT DIMENSIONS
