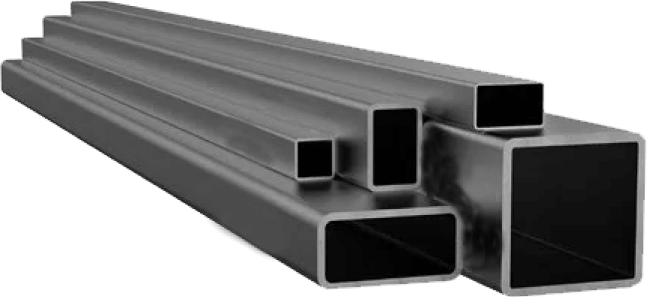

Stainless Steel Square/Rectangular Tubing
Stainless steel square and rectangular tubes can be used for various purposes in engineering and design. They are available in different grades, sizes, and finishes to suit different needs and preferences. Raaj Tubes is a leading manufacturer and exporter of stainless steel hollow sections that meet the highest standards of quality, innovation, and excellence. Raaj Tubes uses the latest technology, best quality material, and excellent craftsmanship to produce stainless steel square and rectangular tubes that are strong, exceptional, and sustainable.
Whether you need them for structural, architectural, decorative or automotive (bus body) applications, Raaj Tubes can provide you with the best solution that meets your specifications and expectations. Raaj Tubes also offers customized services, such as cutting, bending, polishing, and welding, to ensure that you get the perfect product for your project. With Raaj Tubes, you can be assured of getting the finest quality of stainless steel hollow sections at the most competitive prices.
Require Square/Rectangular Tubes?
| *Other intermediate dimensions are also available on request. | ||||||||
| Square | Weight (Kg/m)(Metric Sizes) | |||||||
|---|---|---|---|---|---|---|---|---|
| H x B(mm) | 1.00 | 1.20 | 1.50 | 2.00 | 3.00 | 4.00 | 5.00 | 6.00 |
| 12×12 | 0.358 | 0.423 | 0.518 | – | – | – | – | – |
| 15×15 | 0.453 | 0.538 | 0.661 | – | – | – | – | – |
| 20×20 | 0.613 | 0.729 | 0.901 | 1.176 | – | – | – | – |
| 25×25 | 0.772 | 0.921 | 1.140 | 1.495 | 2.167 | – | – | – |
| 30×30 | 0.932 | 1.112 | 1.379 | 1.814 | 2.645 | – | – | – |
| 32×32 | 0.996 | 1.189 | 1.475 | 1.941 | 2.837 | – | – | – |
| 38×38 | 1.187 | 1.418 | 1.762 | 2.324 | 3.411 | – | – | – |
| 40×40 | 1.251 | 1.495 | 1.858 | 2.452 | 3.602 | – | – | – |
| 50×50 | 1.570 | 1.878 | 2.336 | 3.090 | 4.559 | 5.979 | 7.349 | 8.668 |
| 60×60 | – | 2.261 | 2.814 | 3.728 | 5.516 | 7.255 | 8.943 | 10.582 |
| 65×65 | – | – | – | – | 5.995 | 7.893 | 9.741 | 11.539 |
| 70×70 | – | – | – | – | 6.473 | 8.531 | 10.538 | 12.496 |
| 75×75 | – | – | – | – | 6.952 | 9.169 | 11.336 | 13.453 |
| 80×80 | – | – | – | – | 7.430 | 9.807 | 12.133 | 14.410 |
| 90×90 | – | – | – | – | 8.387 | 11.083 | 13.728 | 16.324 |
| 100×100 | – | – | – | – | 9.344 | 12.359 | 15.323 | 18.237 |
| 120×120 | – | – | – | – | 11.258 | 14.91 | 18.513 | 22.065 |
| 125×125 | – | – | – | – | 11.736 | 15.548 | 19.31 | 23.022 |
| 140×140 | – | – | – | – | 13.172 | 17.462 | 21.703 | 25.893 |
| 150×150 | – | – | – | – | 14.129 | 18.738 | 23.298 | 27.807 |
| 180×180 | – | – | – | – | 17.000 | 22.566 | 28.082 | 33.548 |
| 200×200 | – | – | – | – | 18.913 | 25.118 | 31.272 | 37.376 |
